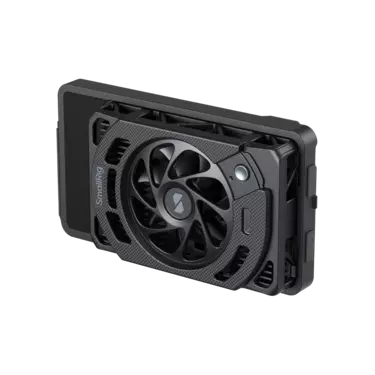

SmallRig Cooling Fan for Nikon ZR

Key Features:

• Combines a 7,000 RPM high-speed fan with TEC cooling chips for powerful heat dissipation, significantly extending shooting time.
• Features high and low cooling modes to effortlessly adapt to different shooting environments and thermal demands.
• Innovative snap-on design enables quick, tool-free installation and removal in just 1 second, offering easy storage and enhanced portability.
• The included mounting bracket provides native support for the Nikon ZR.

SmallRig Cooling Fan for Nikon ZR is engineered to mitigate overheating in the Nikon ZR camera when shooting in extremely hot environments, enabling extended recording times for high-resolution video. Its advanced cooling system combines a high-speed 7,000 RPM fan with TEC (Thermoelectric Cooler) technology for superior heat dissipation, effectively preventing thermal shutdown.

The fan offers two speed settings (high and low) to accommodate various shooting scenarios. Its innovative, tool-free snap-on mount allows for installation or removal in seconds, ensuring effortless operation and unimpeded access to the camera's LCD screen. The included mounting bracket provides native compatibility with the Nikon ZR.

For extended power and continuous cooling, the unit is compatible with V-Mount batteries.

IMPORTANT: The fan cannot be powered by Nikon ZR, thus external power source (eg V-Mount battery is required for operation).

Notes:

1. After installing this product, the camera's LCD screen cannot be retracted. Please remove the cooling fan before retracting the LCD screen.
2. This product does not include a built-in battery, cannot be powered by Nikon ZR and must be connected to an external power source to operate.
3. Camera (built-in) microphone will pick up fan noise during recording.
4. This product is not waterproof. Do not store or use it in humid environments.
5. Do not obstruct the air inlet or outlet while the cooling fan is in operation.
6. Do not use the cooling fan when the camera is inactive to avoid internal condensation.
7. When the fan is not in use, press and hold the power button for about 2 seconds to enter standby mode, or unplug the power cable to turn it off completely.

Specifications
Operating Voltage: 4 – 10.8V
Operating Current: 1 – 2A
Cooling Power : 5 – 18W
Operating Temperature : 0 to 45o
Cooling Technology: Thermoelectric Cooler (TEC)
Noise Level: Normal Mode < 40 dB ; Boost Mode : < 50 dB
Fan Speed : Normal Mode 4,500RPM; Boost Mode 7,000RPM

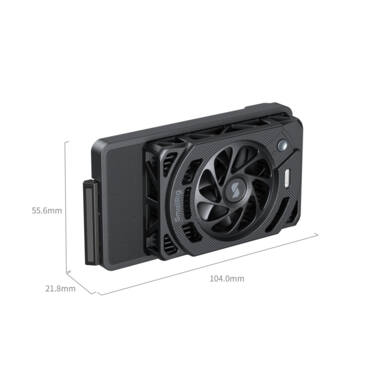

Product Dimensions: 104.0 x 55.6 x 21.8 mm
Package Dimensions: 136.0 x 102.5 x 51.0 mm
Product Weight: 108.0 ± 5.0g
Package Weight: 158.6 ± 5.0g

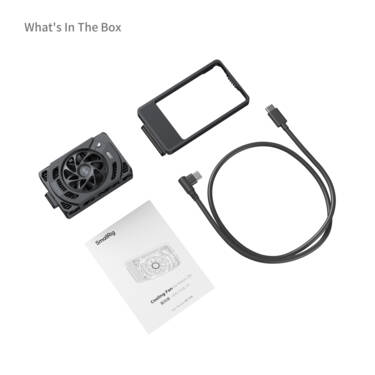

Included Accessories
Cooling Fan x 1
Mounting Bracket x 1
USB-C Cable x 1
Operating Instruction x 1
