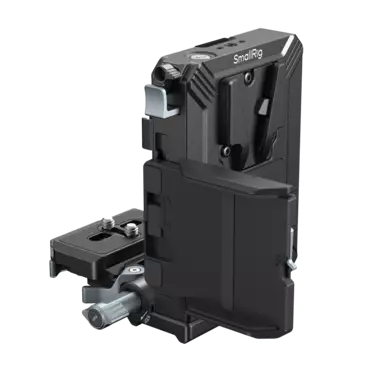

SmallRig V-Mount Battery Plate Kit

Key Features:

• Quick Release Locking Mechanism: Enables instant V-mount battery installation for power delivery
• Multi-Port Power Hub: Built-in D-Tap and USB-C ports power multiple devices simultaneously
• Modular LCD Screen Protector: Features tool-free height and width adjustment to effectively protect screens from impacts
• 180° Rotatable Design: Facilitates effortless LCD screen operation while maintaining a compact size for easy storage
• Cable Management Accessories: Includes cable clips and an elastic Velcro strap for organized cable management, reducing the risk of shooting interruptions due to cable snags

SmallRig V-Mount Battery Mount Plate Kit provides a compact, lightweight, and efficient all-in-one power supply solution. This kit includes a V-mount battery plate, an Arca-Swiss quick release plate, and an LCD screen protector.

The V-mount battery plate features an Arca-Swiss quick release mechanism, allowing for quick attachment to cameras with tool-free locking and adjustment for rapid battery installation. The Arca-Swiss baseplate features an adjustable locking lever, ensuring compatibility with most Arca-Swiss quick release plates on the market and enabling direct slide-in attachment of cages and L-shaped handles equipped with built-in Arca-Swiss plates. Additionally, the baseplate is retractable to accommodate mirrorless cameras of varying sizes.

Strategically positioned power outputs on the V-mount battery plate, including D-Tap and USB-C, enable simultaneous power supply to multiple devices without interfering with camera or top handle operation. The USB-C port supports up to 65W PD input, allowing it to function as a V-mount battery charger. The modular LCD screen protector features tool-free height and width adjustment, fitting variangle screen while protecting it against impacts.

The V-mount battery plate also boasts a 180° rotatable design: 0° for compact storage, 90° for low-profile camera mounting, and 180° for easy LCD screen access. Its stainless steel gear-lock mechanism ensures a secure hold for wobble-free footage, while a damping system prevents the battery from dropping during rotation, guaranteeing the safety of your equipment. The battery release button features a trigger safety lever with customizable engagement, preventing accidental disengagement for secure operation.

The kit also includes cable clips and an elastic Velcro strap for organized cable management, minimizing the risk of snags during shooting. The V-mount plate offers multiple cable clip mounting holes for customized routing. Equipped with multiple 1/4"-20 threaded and locating holes, the V-mount plate allows for the attachment of multiple types of accessories.

Precautions:
1. When using the LCD screen protector, the battery plate can accommodate V-mount batteries up to 80mm / 3.1″ in width.
2. The Arca-Swiss baseplate is compatible with most Arca-Swiss quick release plates. For adjustment instructions, please refer to the included user manual.
3. If the V-mount battery cannot be properly installed, the trigger safety lever may be engaged. To install the battery properly, first disengage the trigger safety lever.
4. After use or when not in use for a long period of time, please remove the V-mount battery or press and hold the power switch button for 3 seconds to cut off the output function.

Included Accessories
V-Mount Battery Mount Plate x 1
Arca-Swiss Plate x 1
LCD Screen Protector x 1
Allen Wrench x 1
Operating Instruction x 1
User Manual x 1
